How to find these settings...
- Online Store
- Customize (Theme Editor)
- Add section
- Basic Filter
Filter products using menus of collection links
Recommended reading
In this section...
Banner
Enable heading *
To accommodate customizations using other sections and headings, you can opt to exclude the default heading
Heading
Title of the section or page, either default or custom
Use h1 tag
For SEO purposes, set the 'Heading' to use an h1 tag. NOTE: This should only be used once per page
Heading size
Set the heading size with the slider. 12px is the minimum, and it steps up by 6 to a maximum of 96px
Subheading
Secondary title of the section or feature
Subheading size
Set the subheading size with the slider. 12px is the minimum, and it steps up by 6 to a maximum of 96px
Text *
A text block for basic formatting including bold, italic & linked text
Text color
Choose a custom color for the text
Text hover color *
Choose a custom color for links when hovered over
Button text color *
Choose a custom color for the default button text and the outlined button hover text
Text alignment
Text can be aligned to the left, right or centered to the container
Content width
The design is based on a 12 column, 1200px wide layout. Refer to the following table to reference content widths:
Setting
Desktop Width
Mobile Width
33%
380px
100%
50%
580px
100%
66%
780px
100%
75%
800px
100%
Horizontal position
After setting the content width, content can be aligned to the left, right or centered
Vertical position
After setting the content width, content can be aligned to the top, bottom or middle
Desktop/Mobile/Custom Image
The background image dimensions depend on 2 options:
- Whether full width or container width. Refer to 'Full width' below
- The height will depend on your 'Height' settings below
Full width
The banner image and background color have the option of being as wide as the screen or only as wide as the content container. Refer to the following table to reference content widths & optimal image sizing:
Setting
Desktop Width
Minimum Desktop/Mobile Width
Full width checked
100%
1900px/600px
Full width unchecked
1180px
1180px/600px
The height will determine the overall width of the background image. The following would be used to determine the actual necessary width of an image:
Screen Width x Height x Image Ratio = Desired Width
Height
The overall height of the banner in relation to the height of the screen. 0-5% is the minimum, and it steps up by 5 to a maximum of 100%.
Some sections may have Desktop & Mobile options:
- Desktop: Used on screens larger than 768px
- Mobile: Used on screens smaller than 768px
Overlay color
A color may be applied to background images to help the text clarity
Overlay gradient
A gradient may be applied to background images to help the text clarity
Overlay opacity
When an 'Overlay' color has been selected, control the opacity with the slider. 0% is the minimum, and it steps up by 5 to a maximum of 100%
* May not be available in all Banners
Options
Filter menu
Select the menu or collections to use. Many times the Main Menu will contain the links you need, but you can create a new menu with a specific structure. The submit button will link to the last selected dropdown collection.

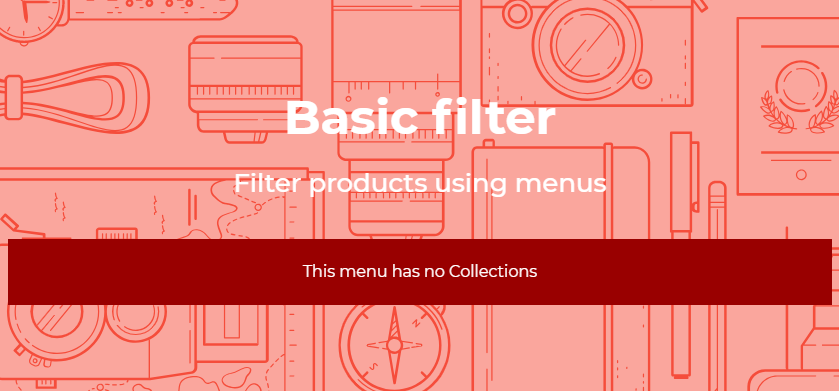

If you choose a menu that does not contain any links to collections, you will see an error:
Horizontal form
By default, the dropdowns will layout side by side. Uncheck this setting to have them stack one of top of the other
First dropdown text
Choose the initial text to display in the first dropdown. By default it will be 'Select'
Remaining dropdown text
Choose the initial text to display in the remaining dropdowns. By default it will be 'Select'
Text color
Choose a custom color for the text
Text hover color
Choose a custom color for links when hovered over
Button text color
Choose a custom color for the default button text and the outlined button hover text
Dropdown line color
Choose a custom color for the dropdown border & arrow
Dropdown background color
Choose a custom color for active select & dropdown background color
Dropdown background opacity
If set to 0%, color will only be visible when the select is active. 0% is the minimum, and it steps up by 5 to a maximum of 100%
Button
Customize the text for the button. By default it will be 'Search'
Outline button
Invert the button to use a frame with no background
Section
Lazy load images *
Disable for "above the fold" images. Enable for any image that is not visible on the initial page load
Background color
Choose a custom color for the background
Background gradient
Choose a custom gradient for the background
MOBILE
Top padding
Add padding to the top of the section on screens less than 768px wide. Padding is applied to the inside of the container. 0px is the minimum, and it steps up by 10 to a maximum of 60px
Bottom padding
Add padding to the bottom of the section on screens less than 768px wide. Padding is applied to the inside of the container. 0px is the minimum, and it steps up by 10 to a maximum of 60px
Bottom margin
Add a margin to the bottom of the section on screens less than 768px wide. Margins are applied to the outside of the container. 0px is the minimum, and it steps up by 10 to a maximum of 60px
DESKTOP
Top padding
Add padding to the top of the section on screens larger than 768px wide. Padding is applied to the inside of the container. 0px is the minimum, and it steps up by 10 to a maximum of 60px
Bottom padding
Add padding to the bottom of the section on screens larger than 768px wide. Padding is applied to the inside of the container. 0px is the minimum, and it steps up by 10 to a maximum of 60px
Bottom margin
Add a margin to the bottom of the section on screens larger than 768px wide. Margins are applied to the outside of the container. 0px is the minimum, and it steps up by 10 to a maximum of 60px
Add a bottom border
A 1px border will be added between the 'Bottom padding' and the 'Bottom margin'
* May not be available in all Sections
* NOTE: May not be available on all sections, blocks or templates
